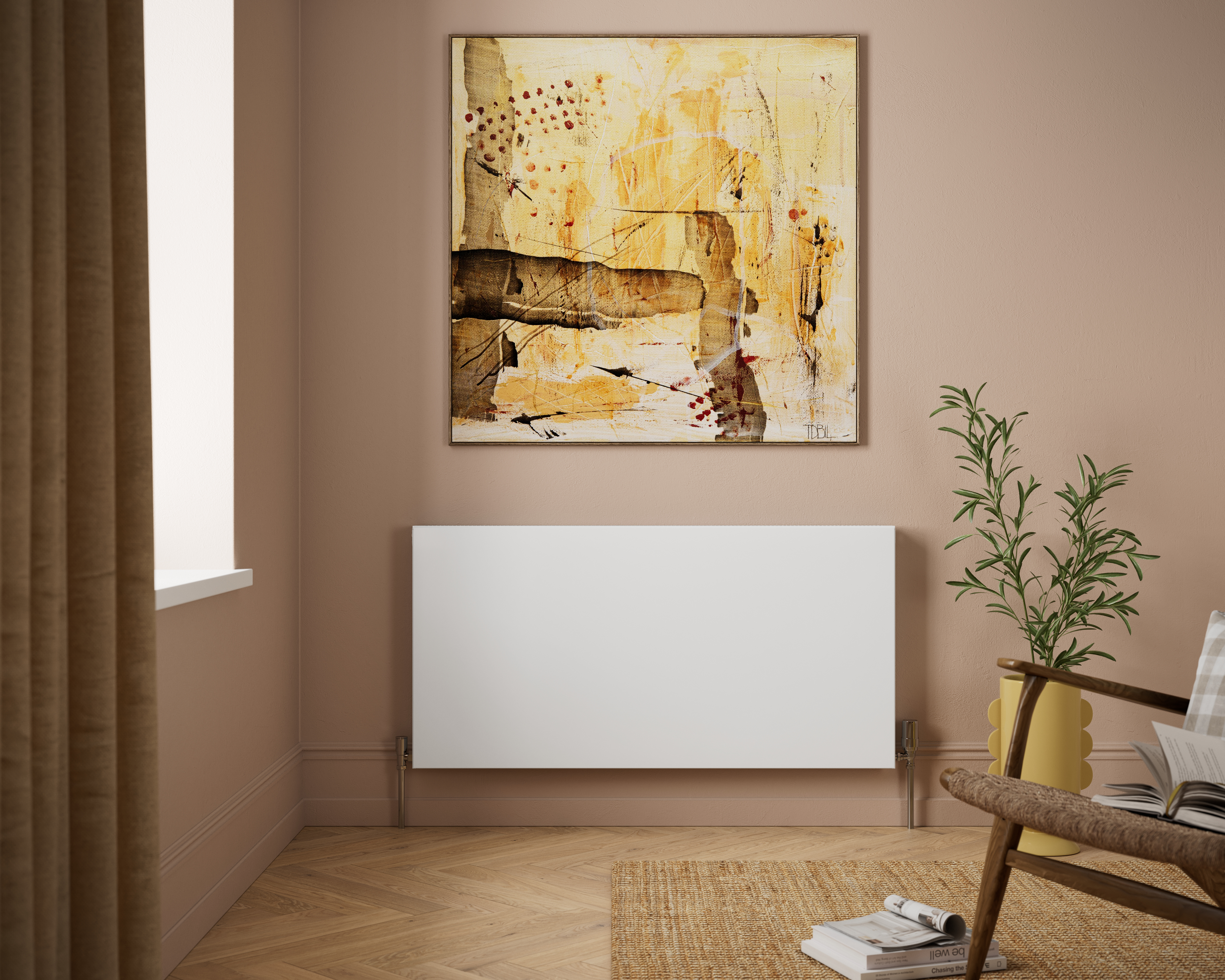

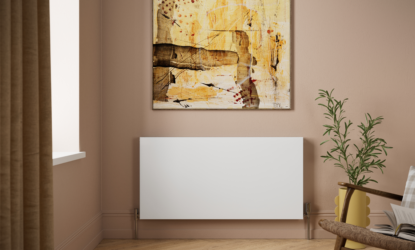

Product Information

Simplicity itself, the Plan range features a smooth, flat front panel with integrated top grille and side panels, providing a minimalistic, slimline, sleek and modern appearance. Available in a range of sizes for both horizontal and vertical radiators, the Plan provides an instant level of sophistication to any room. If you’re looking to add style to a home, the Plan deserves close attention Strictly controlled independent laboratory testing ensures that the Henrad Plan Range radiators are guaranteed to perform to a maximum working pressure of 116 psi (8 bar), and conform to BS EN 442, the European Standard for radiators. Every radiator comes wrapped in robust, practical packaging that will keep the product pristine, right through to handover. Protective through storage and transit, the new packaging design also allows for installation prior to removal.

Technical Information

Henrad combines the most sophisticated production resources in Europe with substantial investment in testing and verification of performance data, which has helped us create high output radiators delivering heating performance that exceed expectation. We also want to exceed expectations when it comes to customer service, and our experts are on hand to support and understand your technical specification needs. All table figures are based on Btu/hr ∆t50 °C product-icon



Guaranteed delivery within 48 hours when your order at your merchants with Henrad Express for only £15 per radiator.

Plan - Single Convector Type 11

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
300 500 4031105 235 802 £151.90
300 1000 4031110 469 1601 £237.47
300 1500 4031115 704 2401 £323.03
500 400 4051104 298 1017 £177.57
500 600 4051106 448 1530 £211.81
500 800 4051108 597 2040 £246.07
500 1000 4051110 745 2545 £280.28
500 1200 4051112 895 3060 £314.49
500 1400 4051114 1044 3570 £348.75
500 1600 4051116 1194 4075 £382.97
500 1800 4051118 1343 4584 £417.22
600 400 4061104 364 1242 £199.00
600 600 4061106 547 1866 £233.23
600 800 4061108 729 2487 £267.45
600 1000 4061110 911 3108 £301.70
600 1200 4061112 1093 3729 £335.95
600 1400 4061114 1275 4350 £370.14
600 1600 4061116 1392 4751 £404.36
600 1800 4061118 1566 5345 £438.60
600 2000 4061120 1741 5939 £472.82

Plan - Double Convector Type 22

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
300 500 4032205 465 1587 £241.82
300 1000 4032210 929 3171 £327.39
300 1500 4032215 1394 4756 £412.98
500 400 4052204 555 1894 £271.72
500 600 4052206 833 2843 £305.93
500 800 4052208 1110 3788 £340.17
500 1000 4052210 1388 4737 £374.44
500 1200 4052212 1666 5686 £408.68
500 1400 4052214 1943 6631 £442.88
500 1600 4052216 2222 7580 £477.13
500 1800 4052218 2499 8526 £511.35
600 400 4062204 654 2232 £295.28
600 600 4062206 980 3344 £329.51
600 800 4062208 1307 4460 £363.72
600 1000 4062210 1634 5575 £397.96
600 1200 4062212 1961 6691 £432.21
600 1400 4062214 2288 7807 £466.43
600 1600 4062216 2563 8744 £500.66
600 1800 4062218 2883 9836 £534.87
600 2000 4062220 3203 10928 £569.11

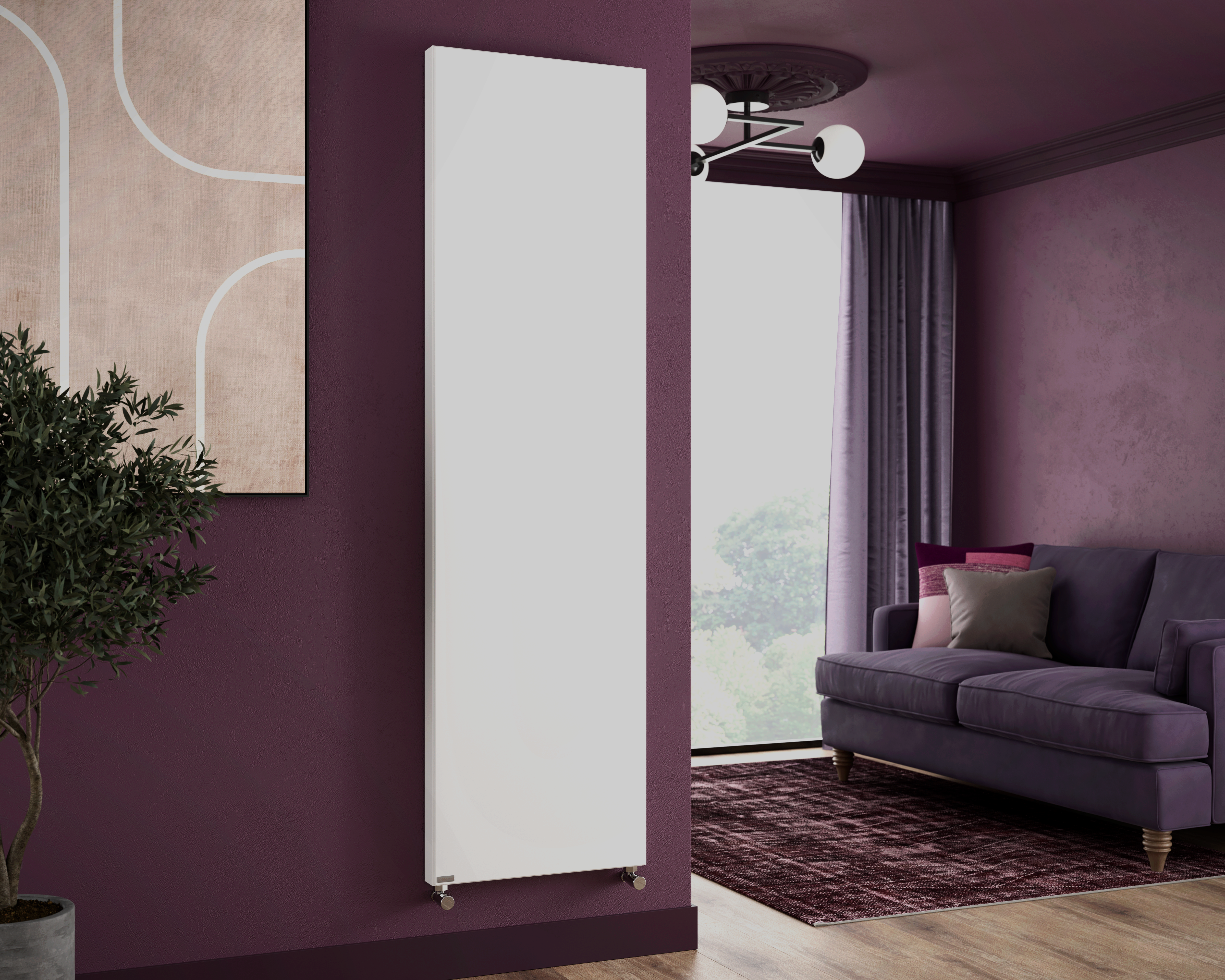

Plan Vertical - Double Convector Type 22

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
1800 400 4182204 1476 5036 £785.66
1800 500 4182205 1845 6295 £853.96
1800 600 4182206 2214 7554 £1,004.28
2000 400 4202204 1588 5405 £916.60
2000 500 4202205 1980 6756 £996.31
2000 600 4202206 2376 8107 £1,171.65
Btu/hr @ ΔT50°C
