Product Information

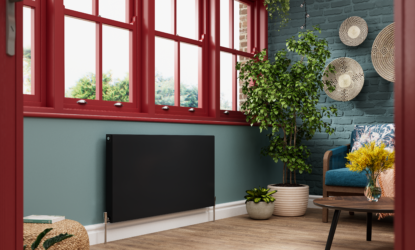

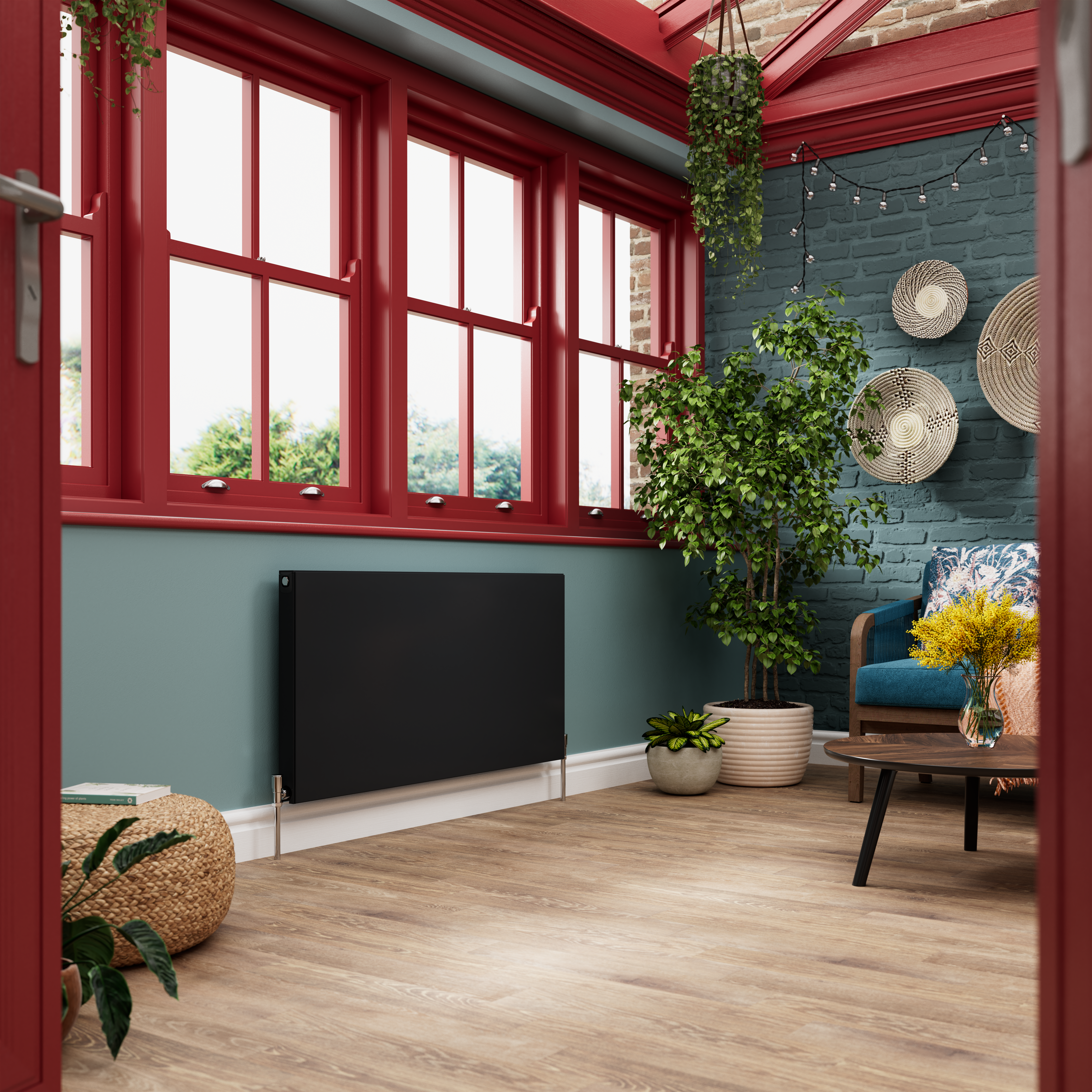

Simplicity itself, the Plan Concept range features a smooth, flat front panel with integrated top grille and side panels.  Now available from stock in Slate Grey and in a range of popular sizes to suit most homes.

Technical Information

Henrad combines the most sophisticated production resources in Europe with substantial investment in testing and verification of performance data, which has helped us create high output radiators delivering heating performance that exceed expectation.

We also want to exceed expectations when it comes to customer service, and our experts are on hand to support and understand your technical specification needs.

All table figures are based on Btu/hr ∆t50 °C

product-icon



Guaranteed delivery within 48 hours when your order at your merchants with Henrad Express for only £15 per radiator.

Plan Concept - Single Convector Type 11

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
600 400 4251104 364 1242 £283.13
600 600 4251106 547 1866 £317.35
600 800 4251108 729 2487 £351.60
600 1000 4251110 911 3108 £385.82
600 1200 4251112 1093 3729 £420.06
600 1400 4251114 1275 4350 £454.30

Plan Concept - Double Convector Type 22

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
600 400 4252204 654 2232 £379.42
600 600 4252206 980 3344 £413.64
600 800 4252208 1307 4460 £447.88
600 1000 4252210 1634 5575 £482.11
600 1200 4252212 1961 6691 £516.37
600 1400 4252214 2288 7807 £550.61

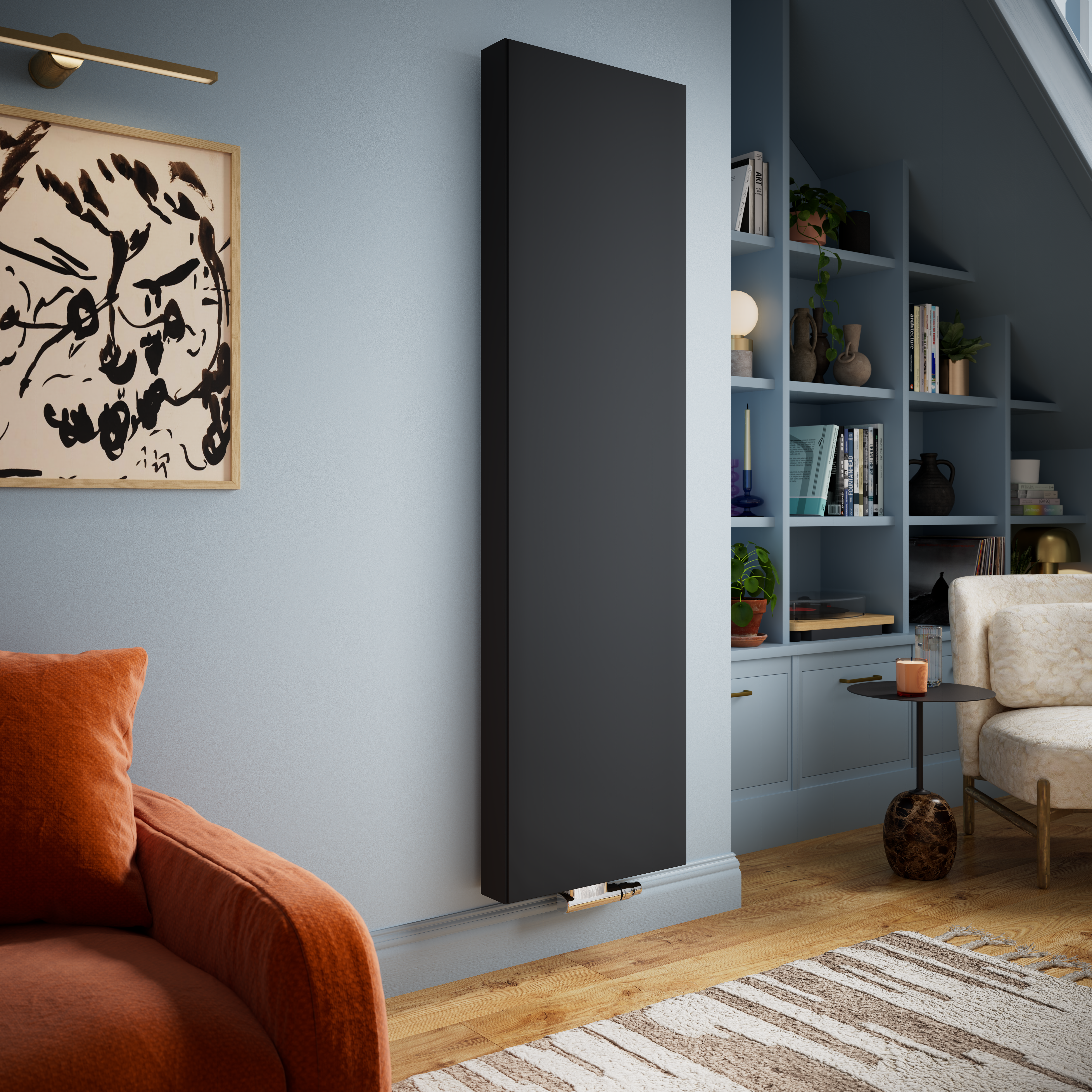

Plan Vertical Concept - Double Convector Type 22

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
1800 400 4282204 1476 5036 £1,128.43
1800 500 4282205 1845 6295 £1,196.73
1800 600 4282206 2214 7554 £1,347.04
Btu/hr @ ΔT50°C
